Design display wall, 2017
       
     
Custom wire hang, 2017
       
     
Custom wire hang, 2017
       
     
display easel/partition, 2017
       
     
display easel/partition, 2017
       
     
display easel/partition, 2017
       
     
wood easel design, 2017
       
     
wood easel design, 2017
       
     
Exploration Bike Rack
       
     
Concept illustration, 2015
       
     
Concept illustration, 2015
       
     
       
     
       
     
ORION SPREAD.jpg
       
     
       
     
Design display wall, 2017
       
     
Design display wall, 2017

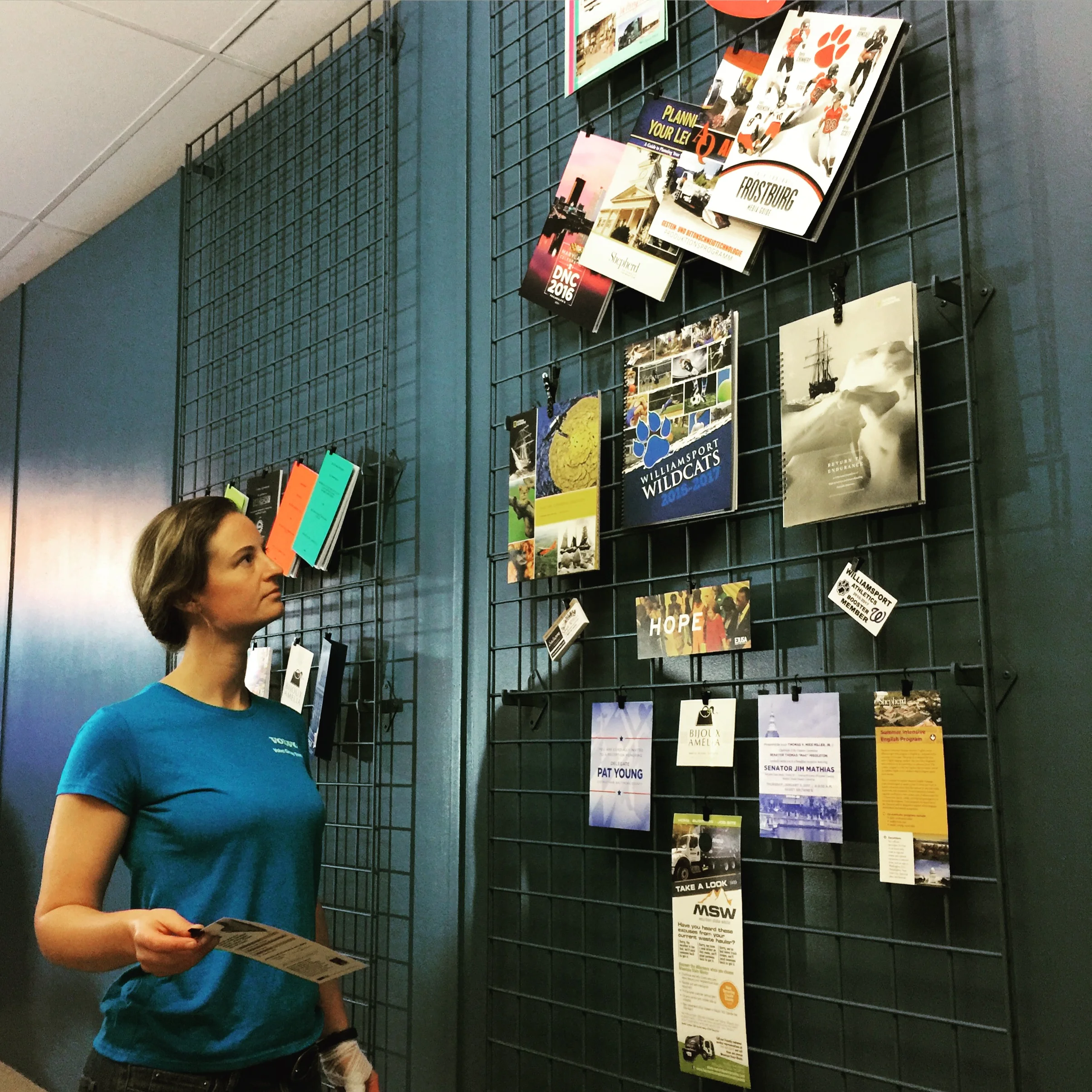

Concept was to design a display wall that would be easy to reconfigure and handle samples for client. The steel grid works with industrial building feel and was hvlp sprayed with acrylic enamel to accent wall and recede. Display items hand on a gator clip and hook system.

Custom wire hang, 2017
       
     
Custom wire hang, 2017

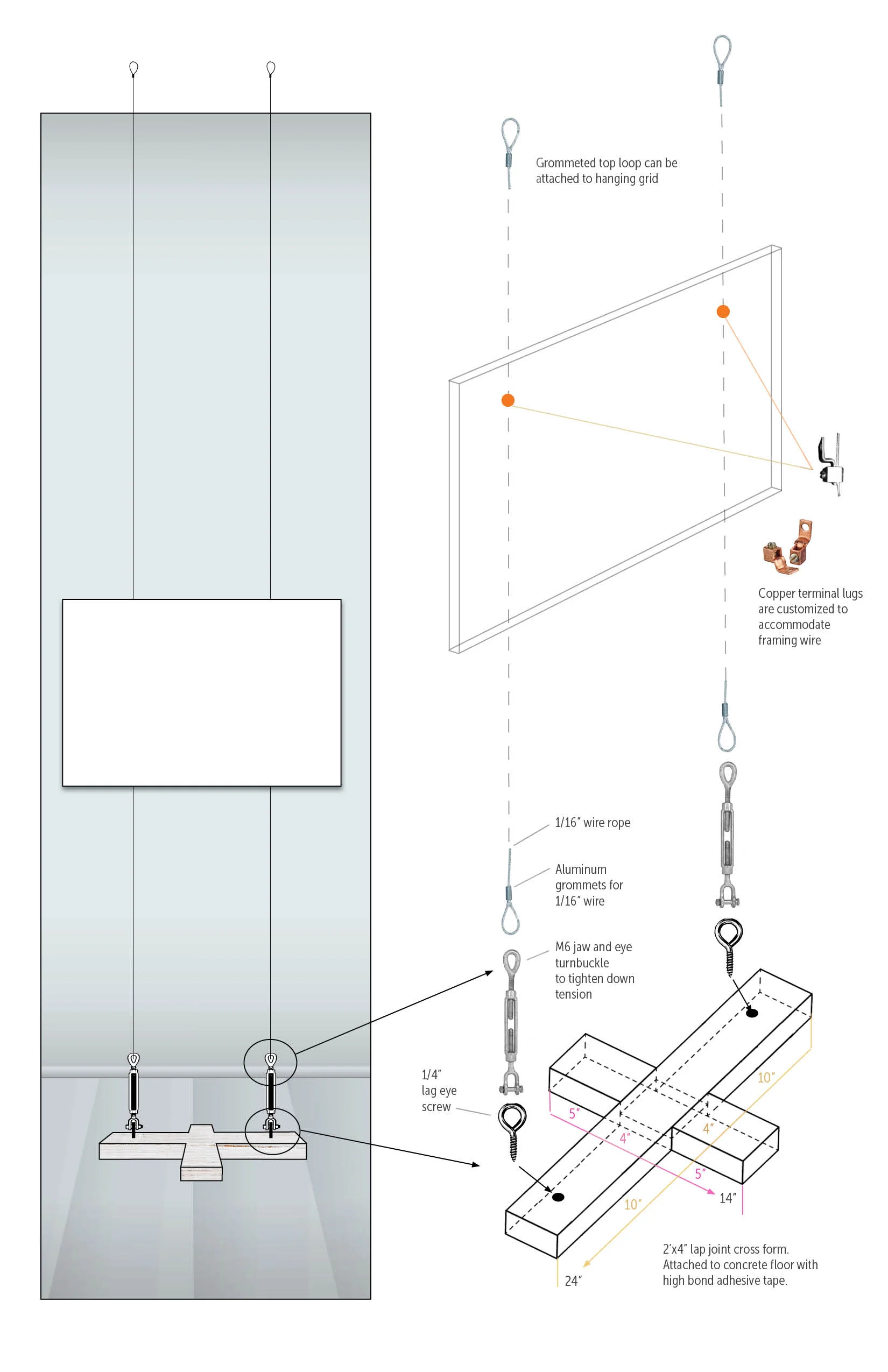

Drawing for wire hang to footer to utilize a hanging grid and enable hanging option in open spaces. This design could allow for back to back hangs for viewing from both sides. See next image to see how this design was exectuted.

Custom wire hang, 2017
       
     
Custom wire hang, 2017

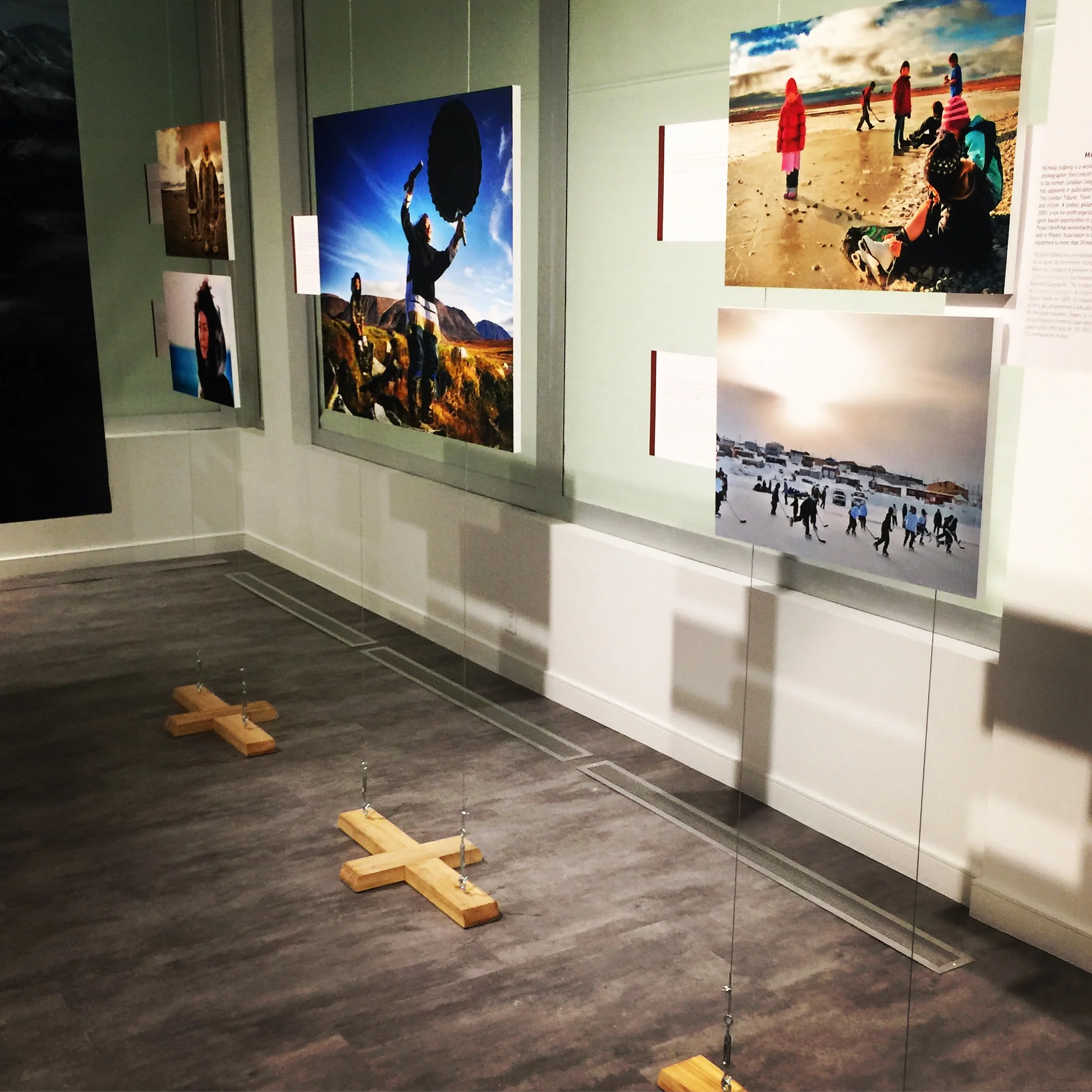

Here you can see the concept executed for the Eyes on the Arctic exhibition in Ottawa. The captions were velcro'd to the back of the prints. A great design for spaces with hanging option but limited wall space. love the floating affect!. Email me with any questions.

display easel/partition, 2017
       
     
display easel/partition, 2017

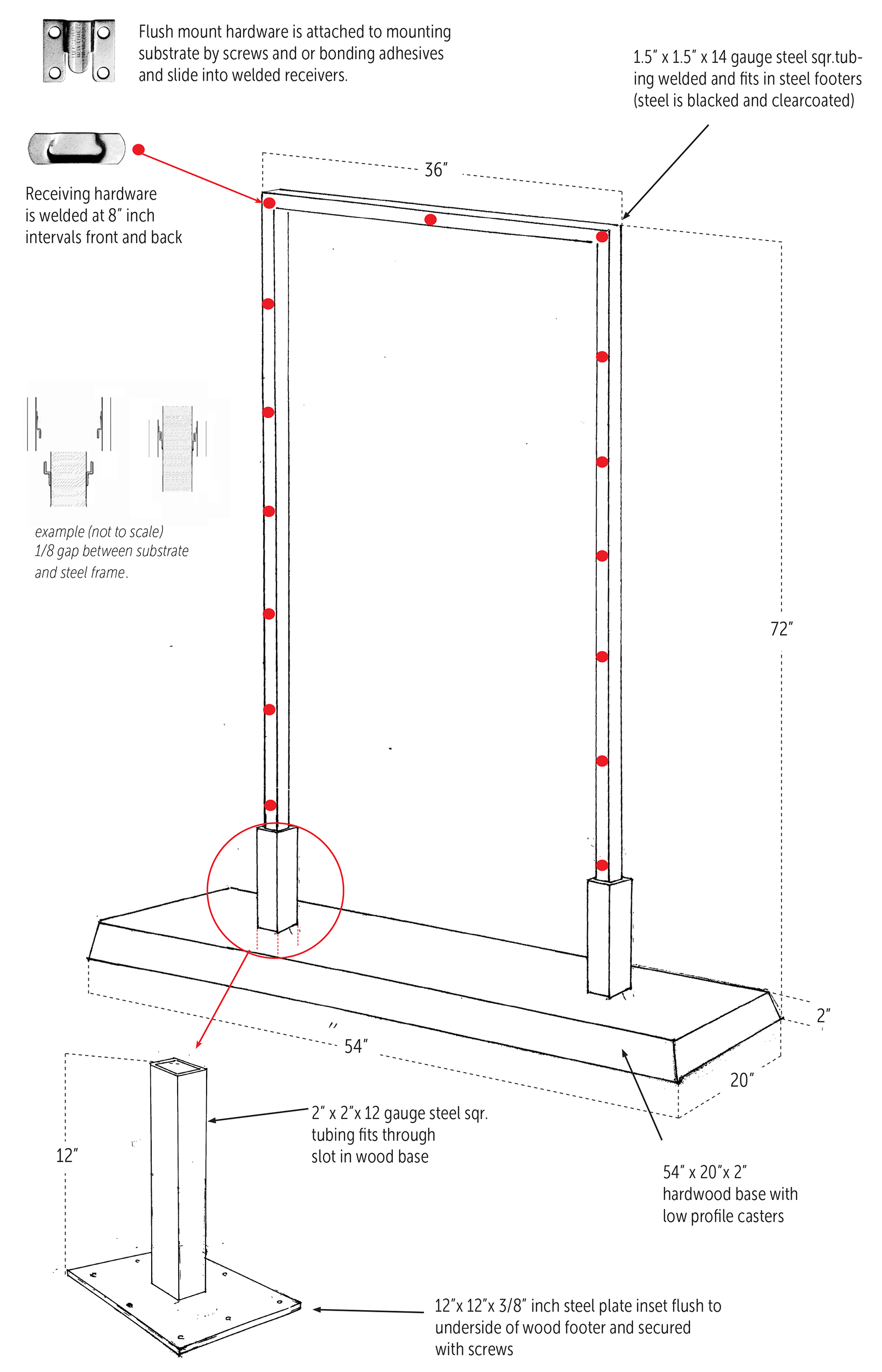

Drawing for large easel that can be used as a display or partition wall. This design works on a cleat system that works single sided or back to back. The top metal frame separates and slides into the metal square stock attached to the underside of the wood footer with low profile castors. I used .5" ultra light mdf for the Eyes on the Arctic exhibit title but a variety of substrate could be used. The metal portion was fabricated by Tim Beachly.

display easel/partition, 2017
       
     
display easel/partition, 2017

This drawing shows how the easel can be formatted as a large signage easel or partition wall. I faded the wall cladding so you can see the steel structure beneath. Im sure the creatively inclined could format in other ways.

display easel/partition, 2017
       
     
display easel/partition, 2017

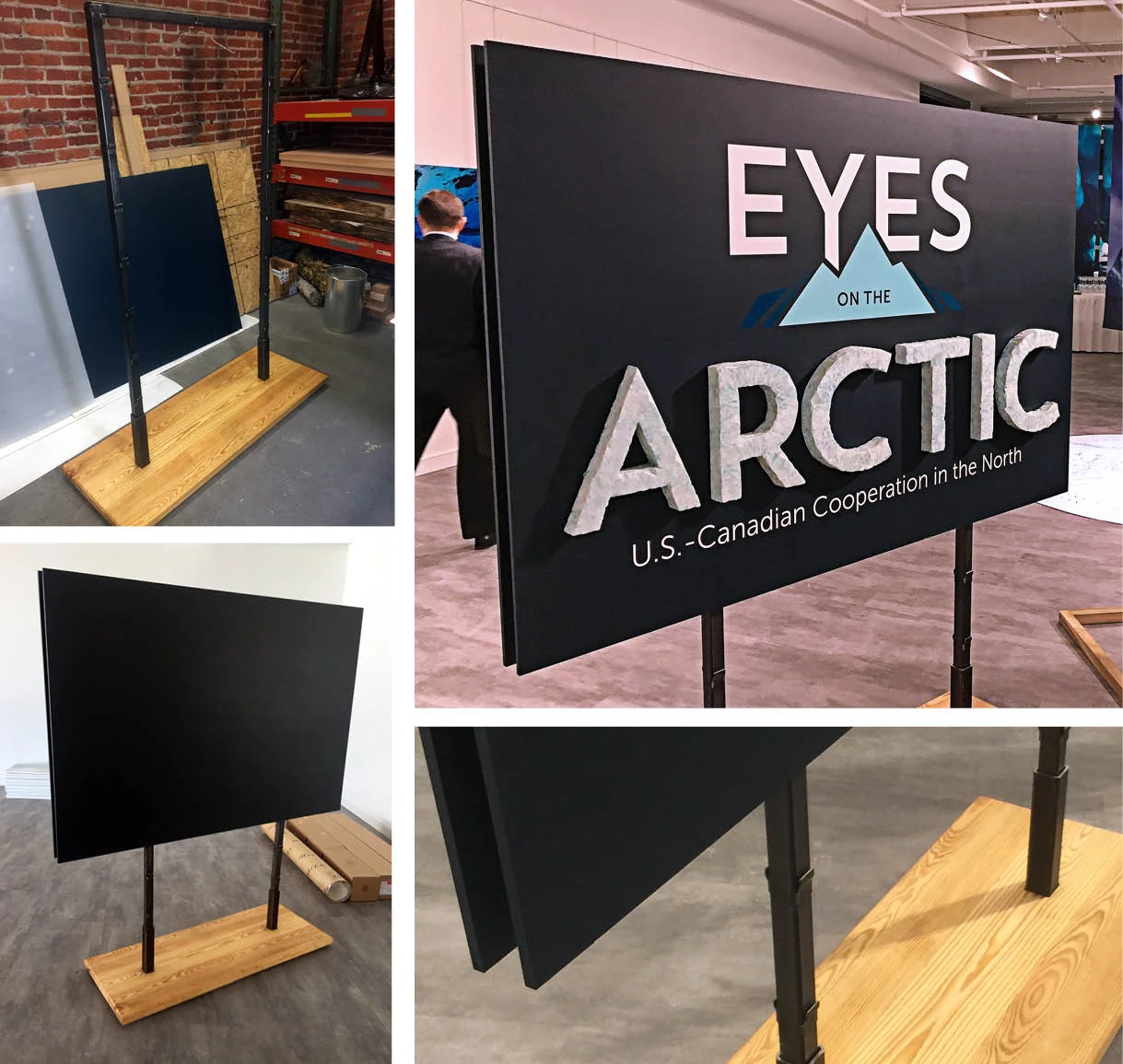

Here you can see the concept executed for the Eyes on the Arctic exhibition in Ottawa. We used primed and painted .5" lightweight mdf as the base to apply vinyl graphics and custom painted hdu dimensional letters. The back was used to hang additional exhibit materials.

wood easel design, 2017
       
     
wood easel design, 2017

These images show the concept sketch for lightweight standing easels and some production shots. We produced 6 total easels for the exhibitions in Ottawa. Open and angled bridle joints instead of hardware. They have a 10° lean and fixed widths to accommodate exhibition panels applied with velcro.

wood easel design, 2017
       
     
wood easel design, 2017

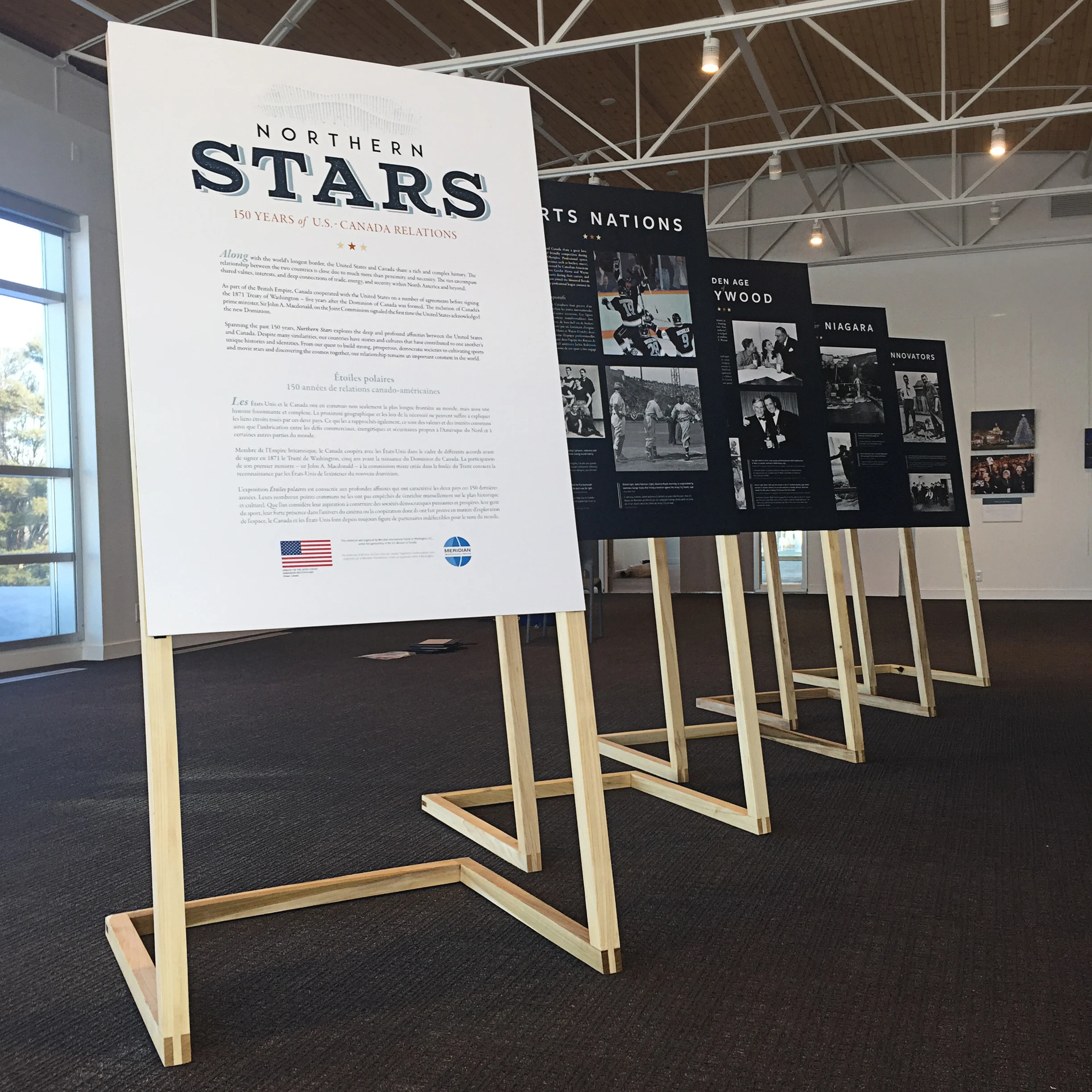

Completed easels being staged at the International Pavilion in Ottawa. lots of benefits to this design for multiple use spaces that need flexibility. Email me if you are interested in ordering these for your venue.

Exploration Bike Rack
       
     
Exploration Bike Rack

This bike rack design was the 2011 Winner of the artistic bike rack design competition held by DC Golden Triangle BID. Its outside of the National Geographic Headquarters on M Street. The design concept was to use basic symbols to represent areas that can continually be explored.

Concept illustration, 2015
       
     
Concept illustration, 2015

Concept illustration for a National Zoo and National Geographic collaboration.

Concept illustration, 2015
       
     
Concept illustration, 2015

Concept design for a prospective project involving the Hoyo Negro cave discoveries and National Geographic.

       
     
       
     
ORION SPREAD.jpg
       
     
